| Product Name | DC Spark-over Voltage @100V/S | Maximum Impulse Spark-over Voltage @100V/μS | Maximum Impulse Spark-over Voltage @1KV/μS | Minimum Insulation Resistance | Maximum Capacitance @1MHz | Arc Voltage @1A | Nominal Impulse Discharge Current @8/20μs ±5times | Max Impulse Discharge Current @8/20μs 1 time | Package | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|

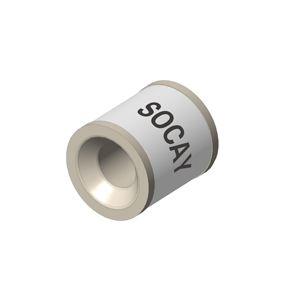

SC2E5-3500D
|
3500V±20% | 4800V | 5000V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|

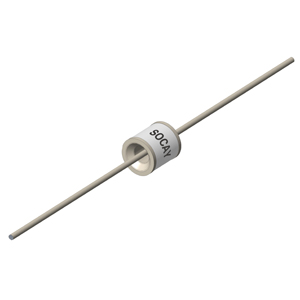

SC2E5-3500DL
|
3500V±20% | 4800V | 5000V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-3000D
|
3000V±20% | 4300V | 4500V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-3000DL
|
3000V±20% | 4300V | 4500V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-2700D
|
2700V±20% | 3800V | 4000V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-2700DL
|
2700V±20% | 3800V | 4000V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-2500D
|
2500V±20% | 3800V | 4000V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-2500DL
|
2500V±20% | 3800V | 4000V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-2000D
|
2000V±20% | 3000V | 3500V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-2000DL
|
2000V±20% | 3000V | 3500V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-1600D
|
1600V±20% | 2200V | 2400V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-1600DL
|
1600V±20% | 2200V | 2400V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-1000D
|
1000V±20% | 1500V | 1600V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
|
SC2E5-1000DL
|
1000V±20% | 1500V | 1600V | 1 GΩ (at 100V DC) | 1.0pF | 25V | 2.5KA | 5KA | φ5.5*6mm |
|
