Lightning is a common natural phenomenon, which seriously threatens human life and property safety. Lightning disasters cover a wide range of areas, extending from the two traditional fields of electricity and construction to almost all industries, especially those closely related to high and new technologies, such as the Internet and data centers. The economic loss and harm caused by lightning.

一、The reference file of the surge protector

1、《IEC61643-11-2011》 Low voltage surge protectors - Part 11 Surge protectors for low voltage distribution systems - Requirements and test methods

2、《GB18802.1-2011》 Low voltage surge protectors (SPD) - Part 1 _ Surge protection for low voltage distribution systems,Apparatus performance requirements and test methods.

二、 Product features

1、The shell of the product is made of flame-retardant material, and the product adopts potting process. It has the characteristics of fire prevention, waterproof and dustproof, and the protection level can reach IP67。

2、The product has both differential mode and common mode surge protection ability

3、Compact product size

4、Installation and application is very convenient, with L, N and PE connection line. There are three-wire parallel type and four-wire series type lightning arrester, can accept the need for customized indicator light

5、Using our new structure process manufacturing, breaking through the conventional structure process. This process improves SPD's impact resistance and is patented

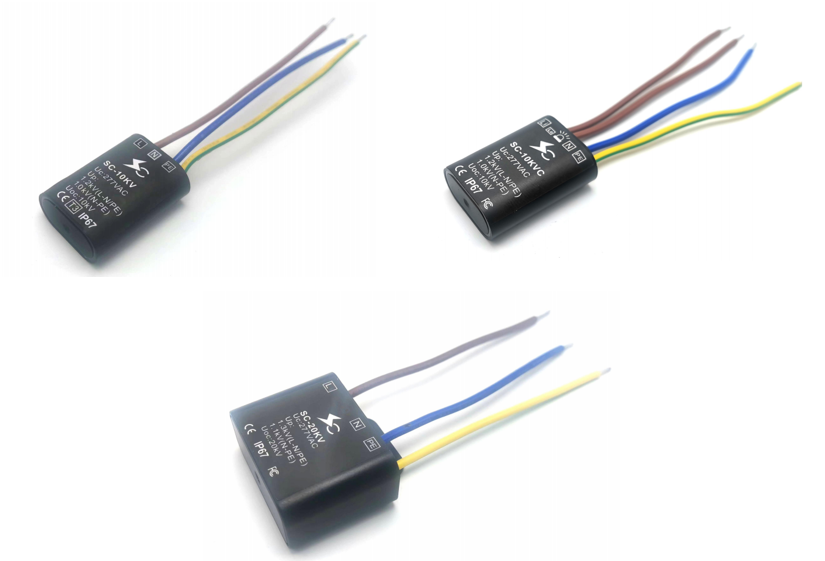

三、Main technical parameters

1、SC-10KV-277

AC220V three-wire parallel surge protector, applied to AC220V interface, can pass 1.2/50-8/20US combined wave 10KV surge impact, can be tested ±15 times, one minute interval, clamp voltage L-N/PE is 1.2kV, clamp voltage N-PE clamp voltage is 1.0kV.

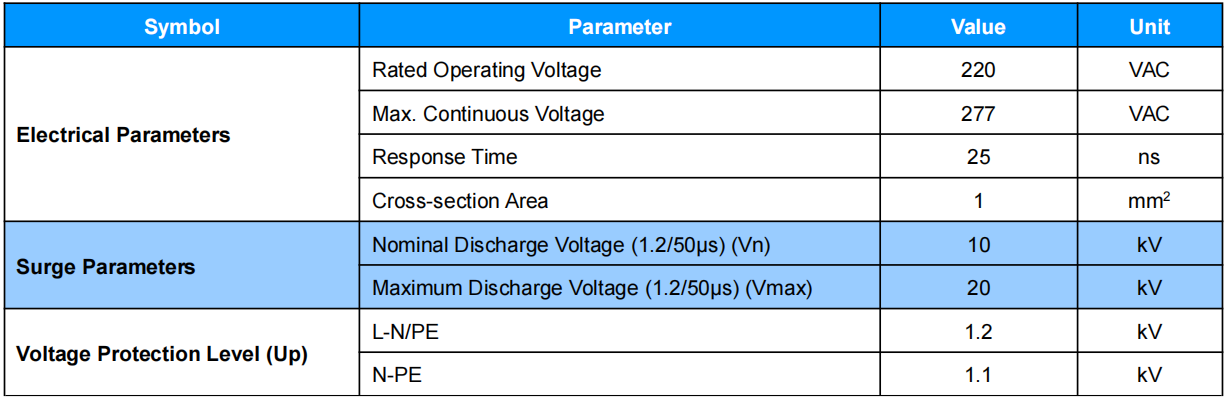

2、SC-10KVC-277

 AC220V four-wire series lightning arreator, applied to AC220V interface, can pass 1.2/50-8/20US combined wave 10KV

Surge impact, can be tested ±15 times, one minute interval, clamp voltage L-N/PE is 1.2kV, clamp voltage N-PE clamp voltage is 1.1kV.

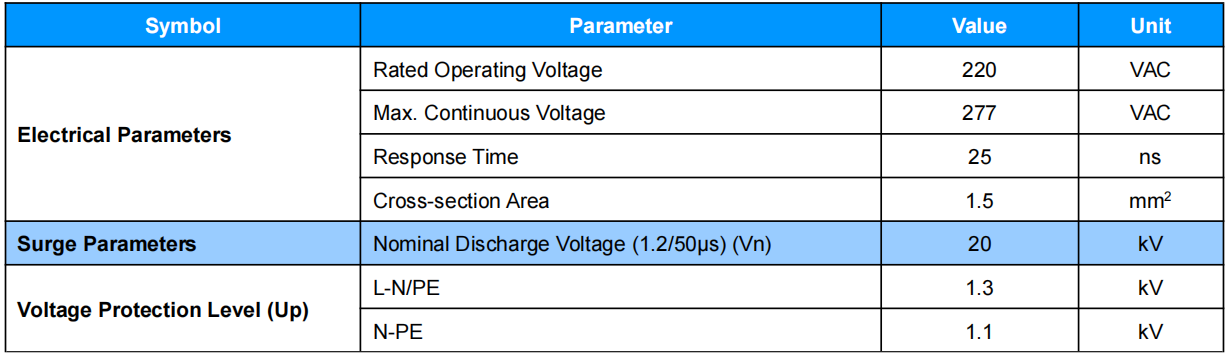

3、SC-20KV-277

AC220V three-wire parallel surge protector, applied to AC220V interface, can pass through 1.2/50-8/20US combined wave 20KV

Surge impact, can be tested ±15 times, one minute interval, clamp voltage L-N/PE is 1.3kV, clamp voltage N-PE clamp voltage is 1.1kV.

四、Main Application Scenarios

>Outdoor and commercial LED lighting

>roadway lighting

> Traffic Lighting

>Ensure electricity supply

>Intelligent Lighting Control System on Parking lots

> tunnel lighting

>security and protection products

>electric appliance

>socket etc

五、Derivative right of ac-tion

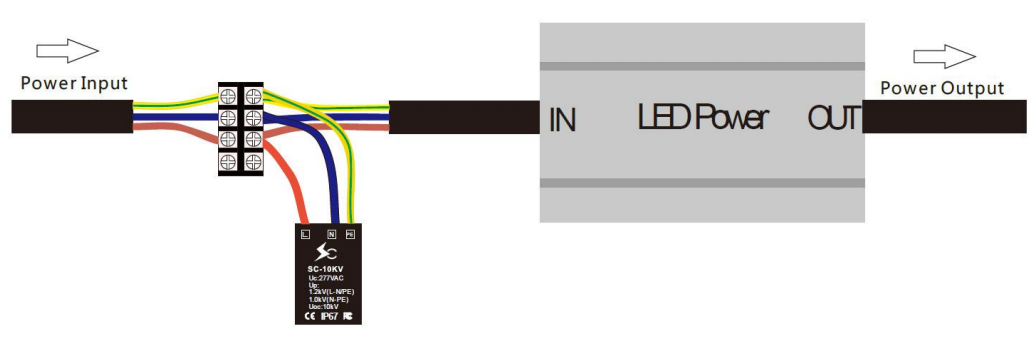

Parallel installation method

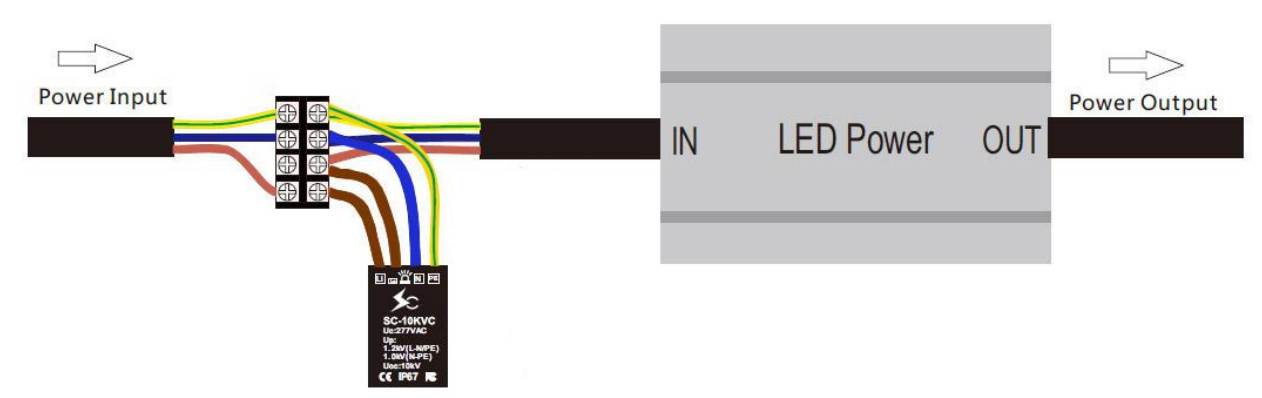

Series type installation method
