The chip varistor is actually a small package of over voltage/anti-static circuit protection devices, from handheld electronic products to industrial equipment, I/O ports on the motherboard (RS232, USB, PS2, VGA, audio) and laptop computers, set-top boxes, MP3 players, DVD players can not be separated from the chip varistor protection. The chip type varistor is especially suitable for electrostatic protection of handheld electronic products with high integration due to its smaller package size.

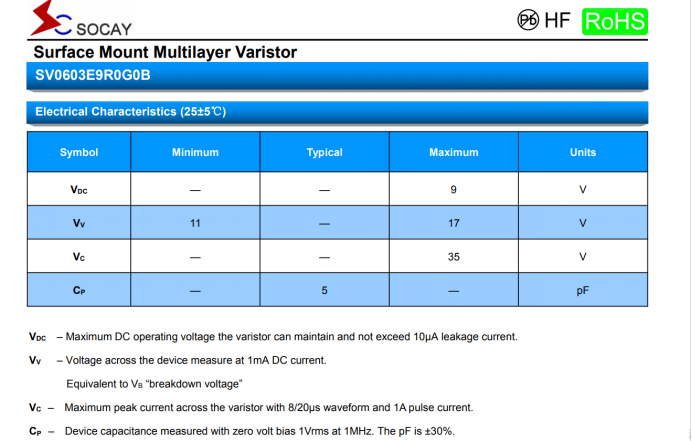

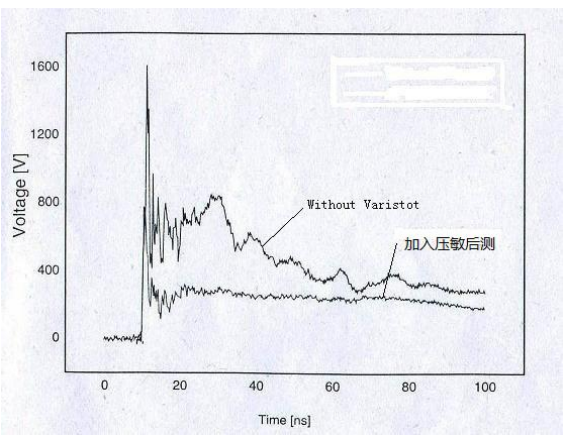

SOCAY Electronics launched a small package surface mount varistor, model SV0603E9R0G0B, its main features: Operating voltage is 9V, breakdown voltage 11V-17V, leakage current does not exceed 10μA, capacitance value 5pF, response speed < 1ns, clamp voltage 35V, meet IEC61000-4-2 electrostatic standard, contact discharge ±30KV, air discharge ±30KV, using SMD0603 package, Package size is 1.6*0.8*0.8mm, halogen-free, in line with RoHS standards. The main advantages of its products and electrostatic elimination waveform are as follows:

1) Extremely fast reaction time, usually less than 1ns.

2) small size

3) Extremely high energy processing capacity large flow rate

4) extremely low price.

5) Low trigger action voltage

6) Dual wizard pass function

SV0603E9R0G0B  At present, it is widely used in USB port, RS232 port, DVI, IEEE1394 port, portable wearable devices and peripherals. At present, many handheld electronic equipment manufacturers have used SV0603E9R0G0B in batches, welcome to consult and place orders. As of February 17, 2022, SV0603E9R0G0B has about 1KK in stock. Welcome to  SOCAY for inquiry and sample request.
