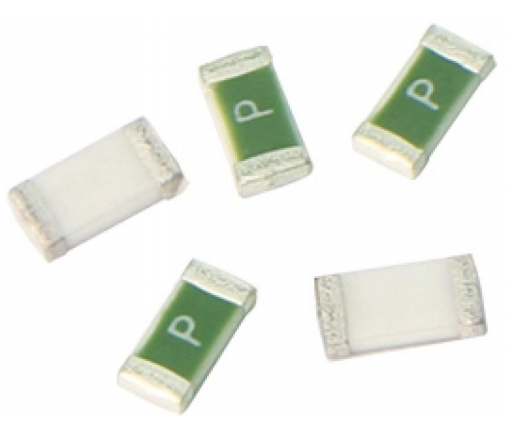

SC1206快断系列 - 硕凯电子SOCAY-SUT气体放电管GDT|厚膜电阻工厂|TVS管原厂|ESD静电二极管厂商|压敏电阻供应批发|自恢复保险丝厂家

Product Name	Rated Voltage DC (V)	Rated Current (A)	Breaking Capacity (A) @72V	Breaking Capacity (A) @32V	Breaking Capacity (A) @24V	Typical Cold. Resistance (mOhms)	Typical Voltage Drop (mV)	Typical Pre-Arcing I²t (A²Sec)
12 000.0.25	72	0.25	100	100	300	3700	1350	0.00038
12 000.0.375	72	0.375	100	100	300	1850	720	0.00077
12 000.0.5	72	0.5	100	100	300	1050	690	0.0019
12 000.0.75	72	0.75	100	100	300	775	680	0.15
12 000.1	72	1	100	100	300	485	550	0.18
12 000.1.25	72	1.25	50	50	150	165	184	0.021
12 000.1.5	72	1.5	100	100	300	218	355	0.4
12 000.2	72	2	100	100	300	133	310	1.1
12 000.2.5	72	2.5	100	100	300	79	230	1.7
12 000.3	72	3	100	100	300	49	185	2.2
12 000.3.5	72	3.5	100	100	300	37	175	2.7
12 000.4	72	4	100	100	300	33	160	3.2
12 000.4.5	72	4.5	100	100	300	28	150	4.2
12 000.5	72	5	100	100	300	22	135	6
12 000.7	32	7	-	100	300	11.5	120	18
12 000.10	24	7	-	50	150	12	140	5.68
12 000.12	24	12	-	100	300	5.9	85	45
12 000.15	24	15	-	100	300	3.8	75	63
12 000.20	24	20	-	100	300	2.9	70	80
12 000.25	24	25	-	100	300	1.6	60	90
12 000.30	24	30	-	100	300	1.3	60	100
