Car stereos are stereos that can be installed in the car. Car stereos are designed to be different from home stereos due to the specificity of the environment in which they are used. When people use car stereos on a daily basis, they are not familiar with its characteristics, which can easily lead to some unnecessary failures. As a product in the car, it is susceptible to the impact of various surges in the car, especially in the case of throwing load, the huge surge energy is very easy to damage the car products, for the car surge Socay Electronics launched a special protection device SM8E36A for car surge.

The device is available in SMD package, which makes it easy to manufacture. The large pad structure of the pins facilitates heat dissipation and therefore provides a very high surge protection capability. The device itself can reach 8000W and can pass the ISO 7637-2:2004 standard for 24V systems: 5A, 174V, 2 ohms, 350ms surge rating.

The device has an operating voltage of 36V, a clamp voltage within 58.1V and an operating voltage range of -55 ~ +175°C.

Features:

Operating voltage: VR: 36V

Breakdown voltage: VBR @ (1mA): 40.2V - 44.2V

Clamp voltage: VC @ (150A): 58.1V

Leakage current: IR@(36V): 5uA

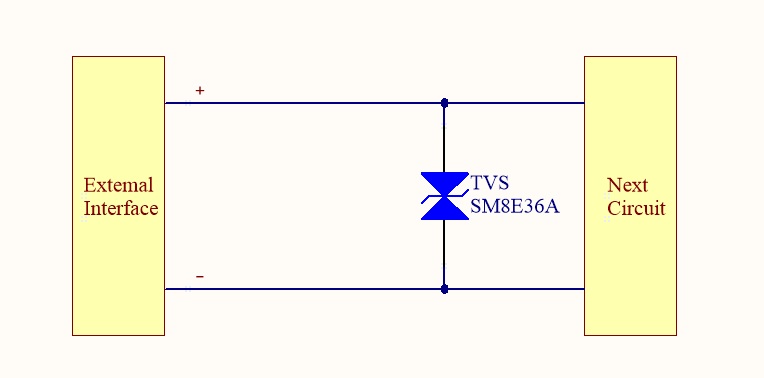

Protection Diagram:

Application:

Car Recorder

ADAS Advanced Driver Assistance System

OBD on-board diagnostic system

DMS Driver Status Monitoring System

In-car LED

Cigarette lighter

    In-car power seats

·····
